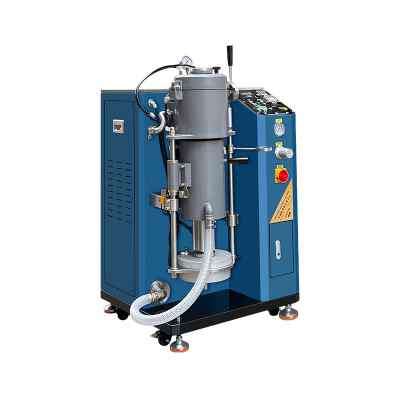

The FOCO series of induction vacuum pressure casting machines is specifically designed for precision casting of precious metals.
Utilizing advanced medium/low-frequency IGBT induction heating technology enables efficient, oxidation-free, and high-quality casting in a vacuum and inert gas-protected environment.
Equipped with automatic frequency tracking, electromagnetic stirring, and multiple safety protection systems, the machine is particularly suitable for mass production of rings, bracelets, 3D-printed chains, and crafts, ensuring high density, precision, and mirror-like surface finishes.
Model: HS
Power: 8 kW-15 kW
Capacity: 1 kg – 3 kg
Voltage: 220V – 418V, 50/60Hz (Single-phase/Three-phase)
Vacuum Pressure Casting Machine for Sale
Automatic vacuum pressure casting machine for metal casting.
Features
- Efficient Heating: IGBT technology with electromagnetic stirring ensures uniform melting and 30% faster heating.
- Smart Control: Auto/manual modes with recipe storage for simplified operation.
- Vacuum Protection: Optional mechanical/high-vacuum pumps prevent oxidation and porosity <0.1%.
- Flexible Configuration: Supports flanged/flangeless crucibles (3.5″-5″ flanges) and vibration modules.
Optional equipment
- Vacuum Systems: Mechanical pump (standard) / High-vacuum pump (custom).
- Cooling Solutions: Water cooling (standard) or independent chiller (for high-temperature processes).
- Customizable Functions: Vibration demolding module, specific-size steel flask.
Parameters
| Model | Power | Voltage | Capacity | Weight | Dimensions |
|---|---|---|---|---|---|
| HS-VPC1 | 8 kW | 220V, 50/60Hz Single-phase | 1 kg | ≈140 kg | 660×680×900 mm |

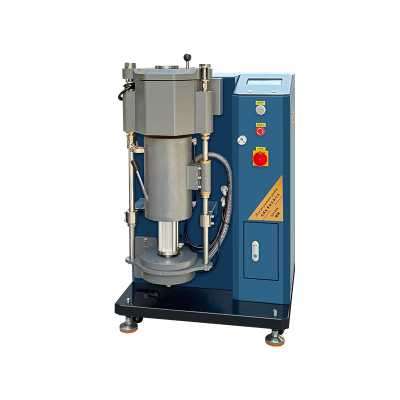

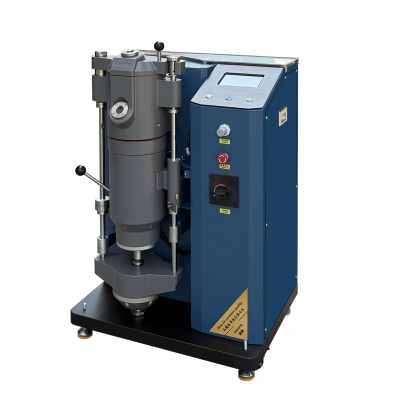

| HS-VPC2 | 10 kW | 380V, 50/60Hz Three-phase | 2 kg | ≈200 kg | 780×720×1230 mm |

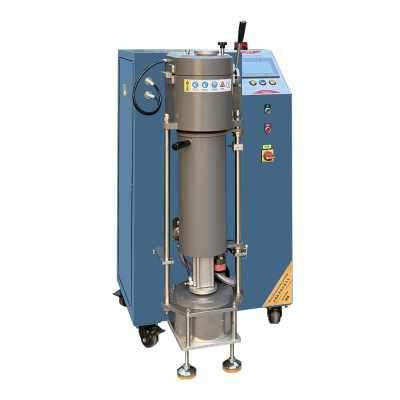

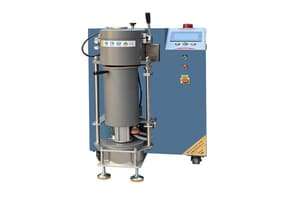

| HS-VCT | 15 kW | 380V, 50/60Hz Three-phase | 3 kg (Au) 1.5 kg (Ag) | ≈280 kg | 750×850×1300 mm |

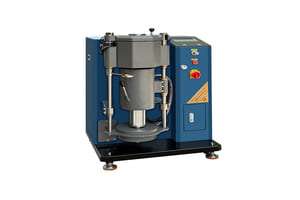

| HS-TVC | 10 kW | 380V, 50/60Hz Three-phase | 2 kg | ≈250 kg | 780×720×1230 mm |

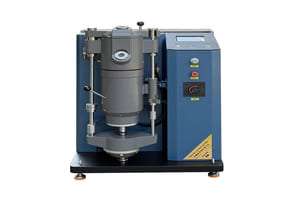

| HS-T2 | 10 kW | 380V±10% Three-phase | 2 kg (24K) 1.5 kg (14K) | ≈250 kg | 800×600×1200 mm |
Gallery
See Projects of this Machine

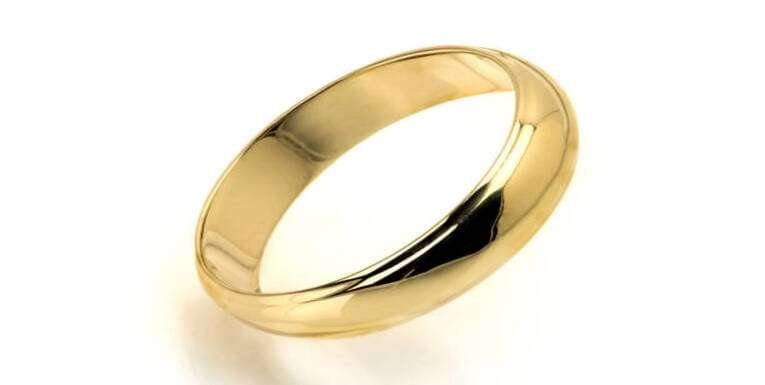

Batch Casting of Precision Gold Jewelry Rings

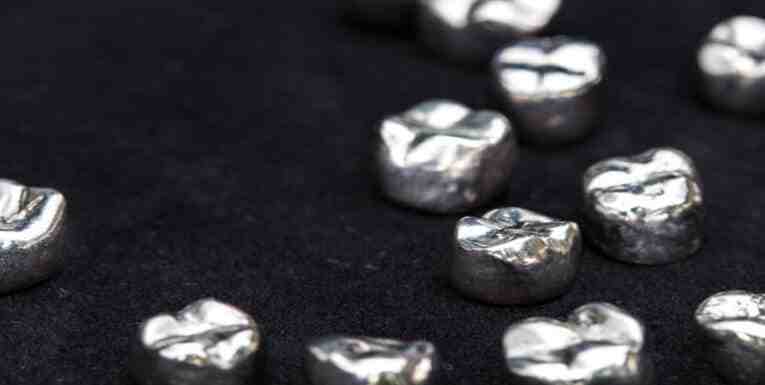

Precision Forming of Dental Cobalt-Chromium Alloy Crowns
Application
Vacuum Pressure Casting

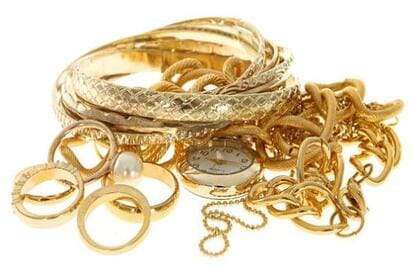

The vacuum pressure casting machine is specifically designed for automated precision casting of gold, silver, copper, and their alloys, making it ideal for manufacturing jewelry, dental components, and industrial parts.
Related Vacuum Induction Heating Machine
FAQ
The machine requires inert gas, such as Argon or Nitrogen with a purity of no less than 99.99%. The equipment comes with a fully integrated gas control system ready for connection.
The machine comes standard with a water cooling system. Connection to a tap water supply (meeting flow and pressure requirements) is possible. However, for continuous 24/7 operation or scenarios demanding high cooling stability, we highly recommend opting for an independent water chiller for optimal performance and energy efficiency.
Yes. We can customize specific molds (e.g., tree-shaped molds) or non-standard size steel flasks according to your product requirements, supporting up to 5-inch flanges. Please contact us with your specific needs for a custom solution.
